Project report – Braidside Integrated Primary School
- Posted by Graham Beckett
- On 27/08/2020
- 0 Comments
- Air Handling Units, Mandik

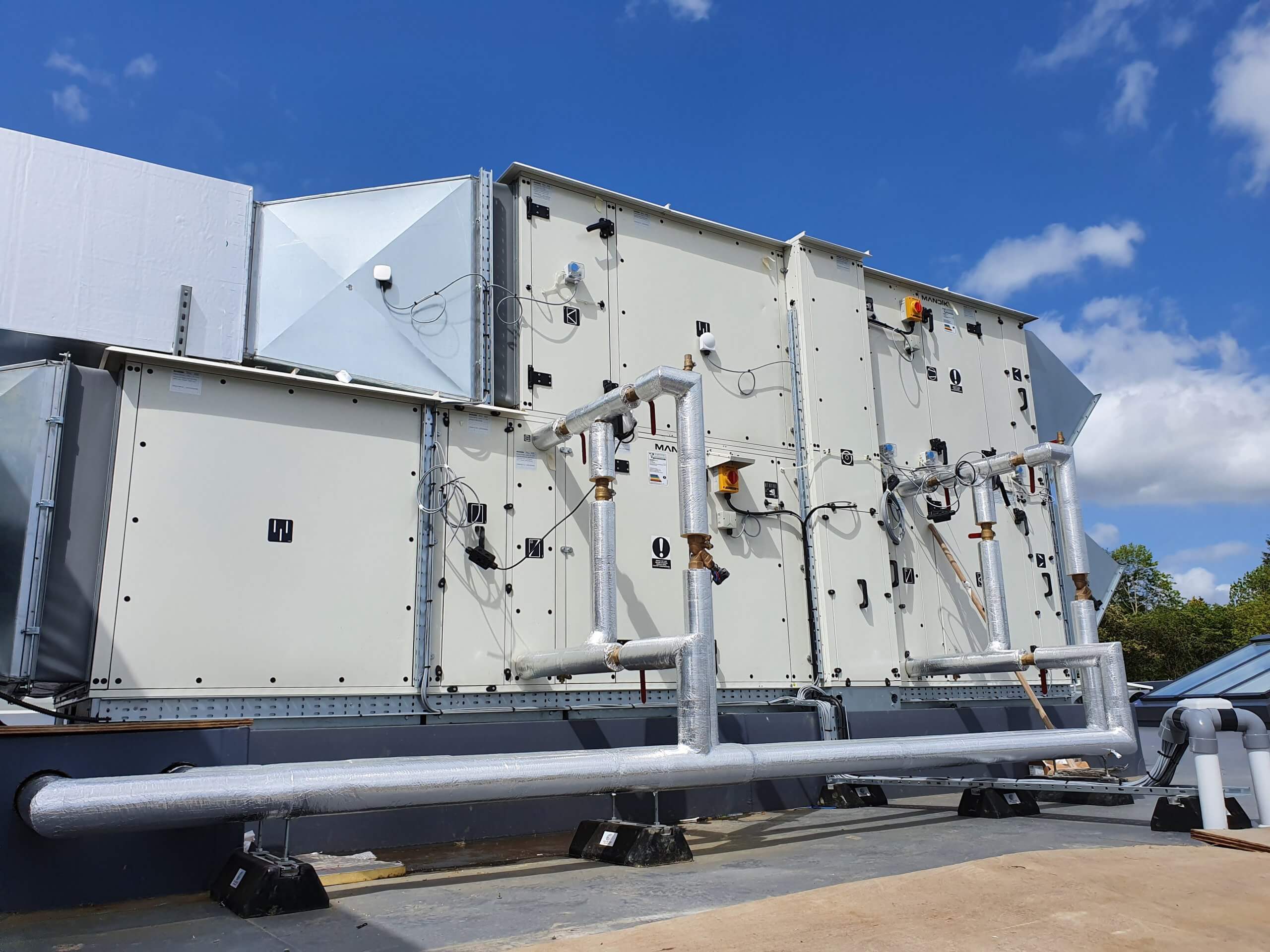

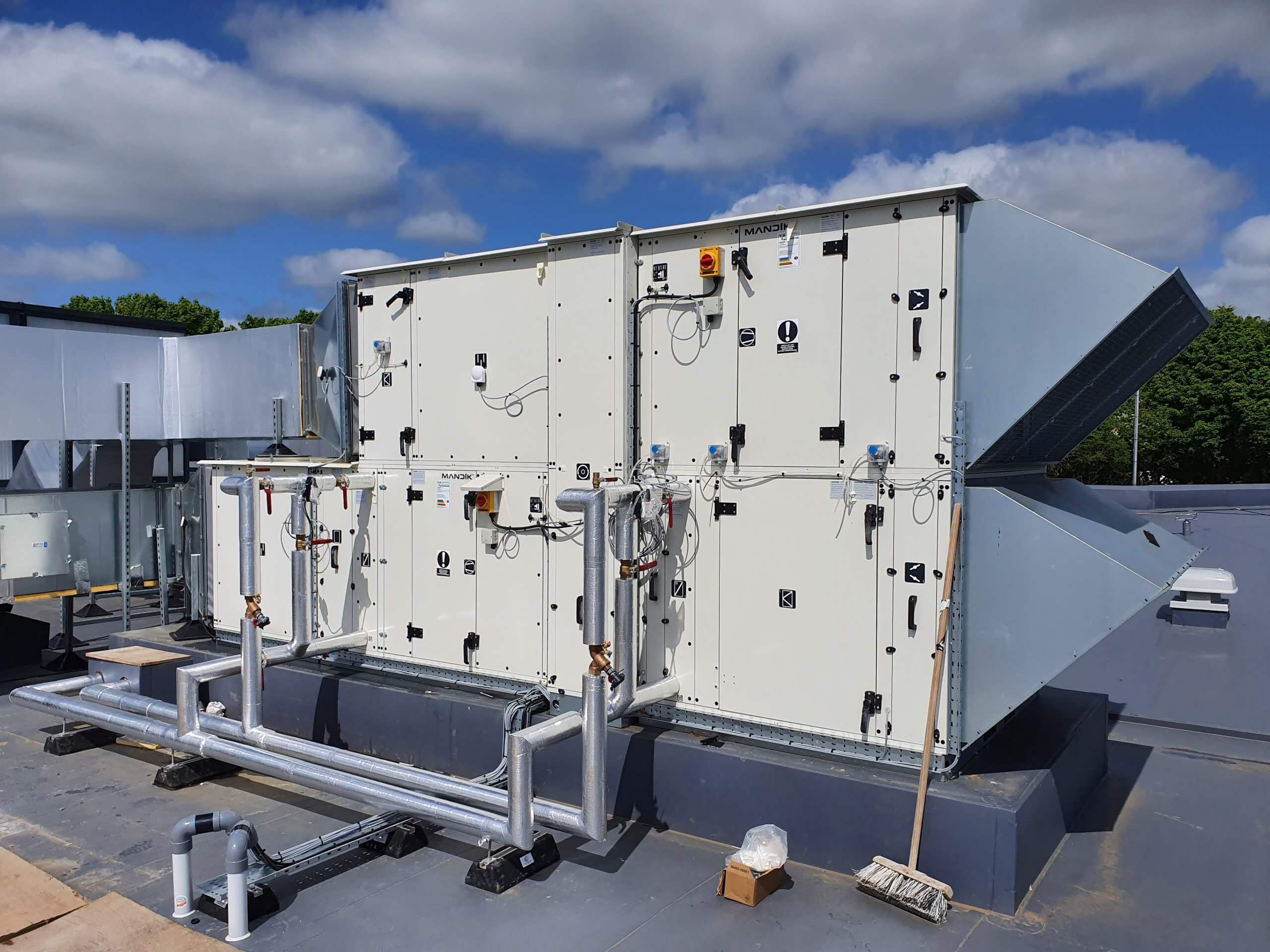

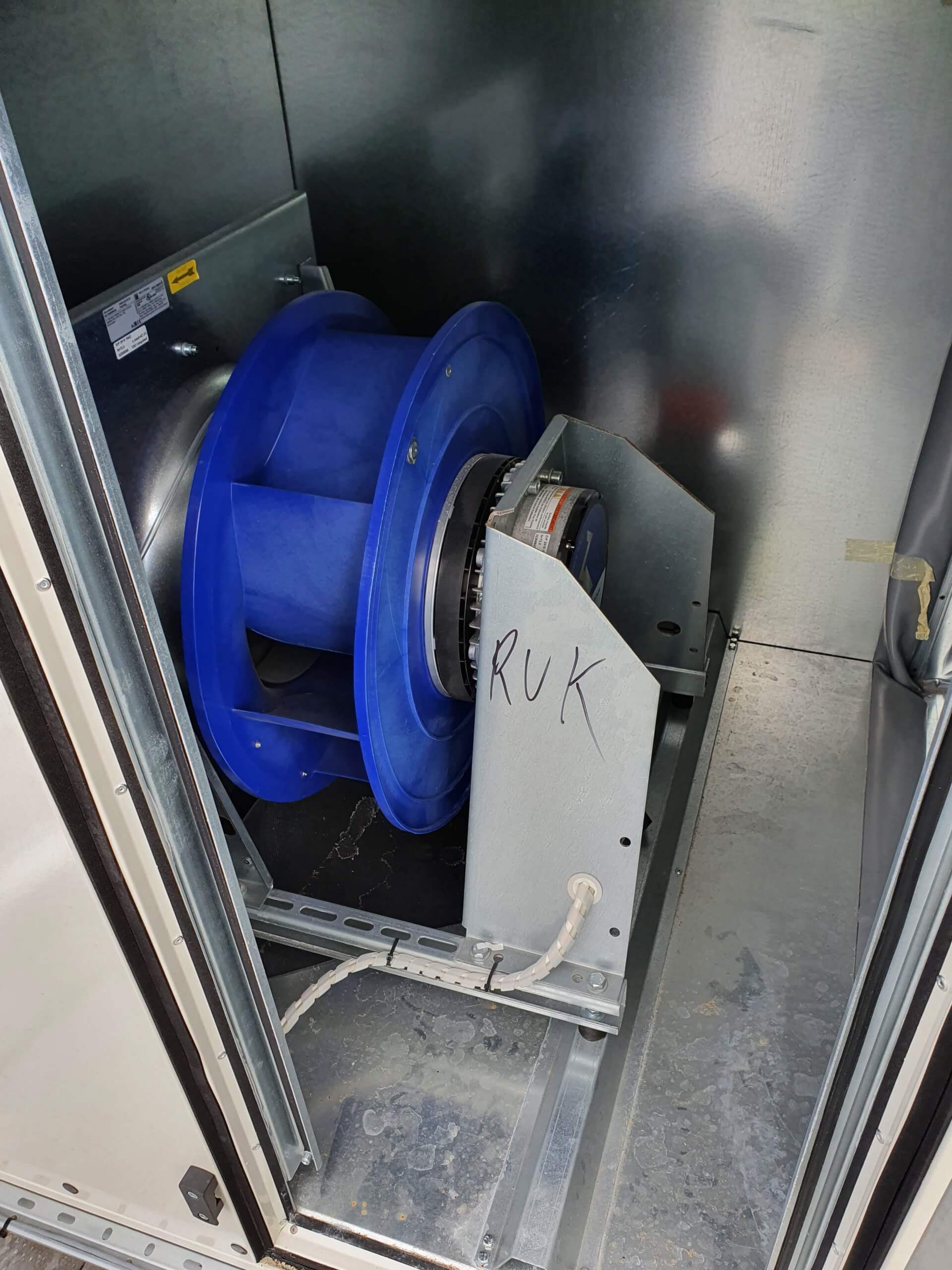

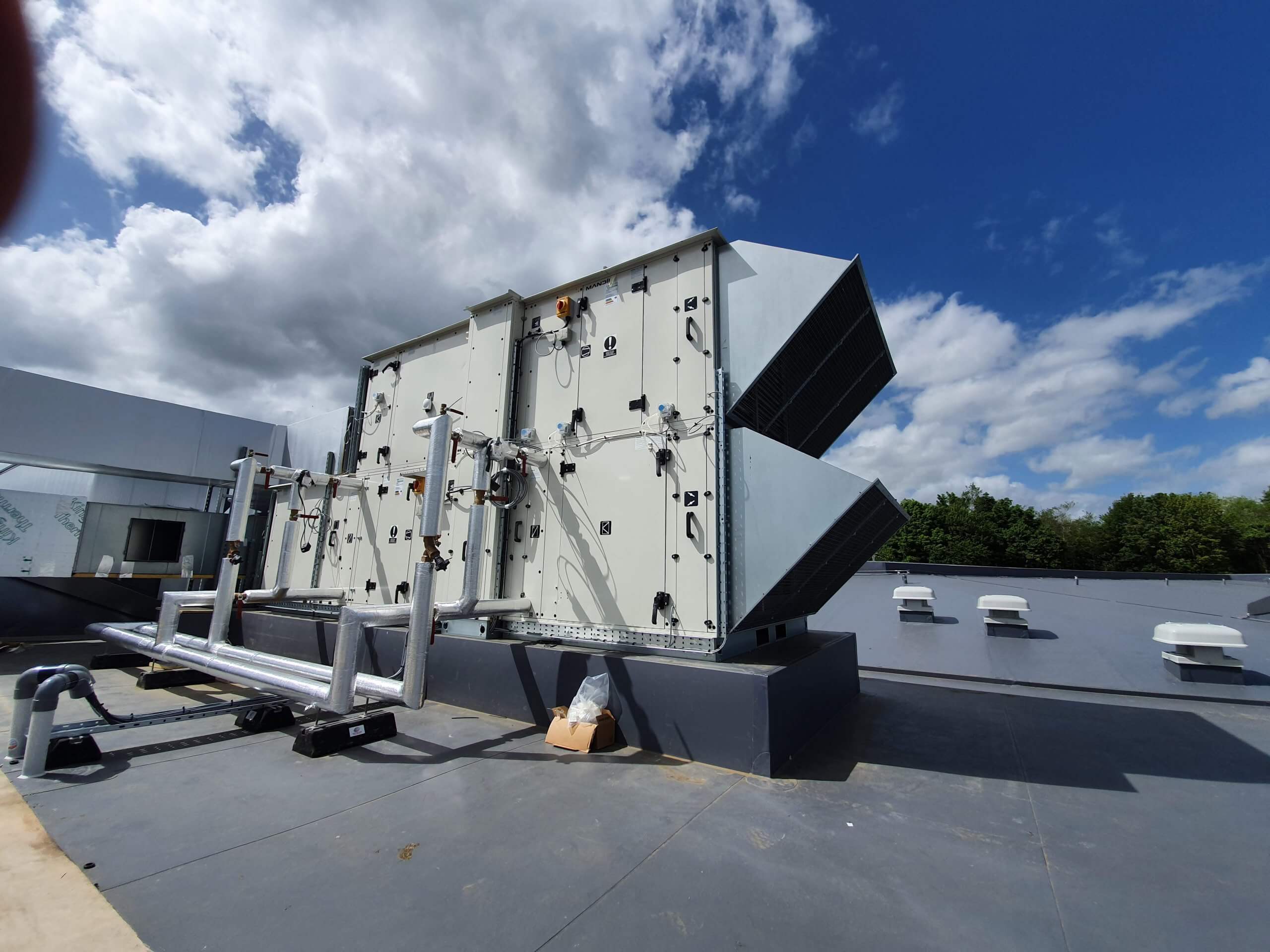

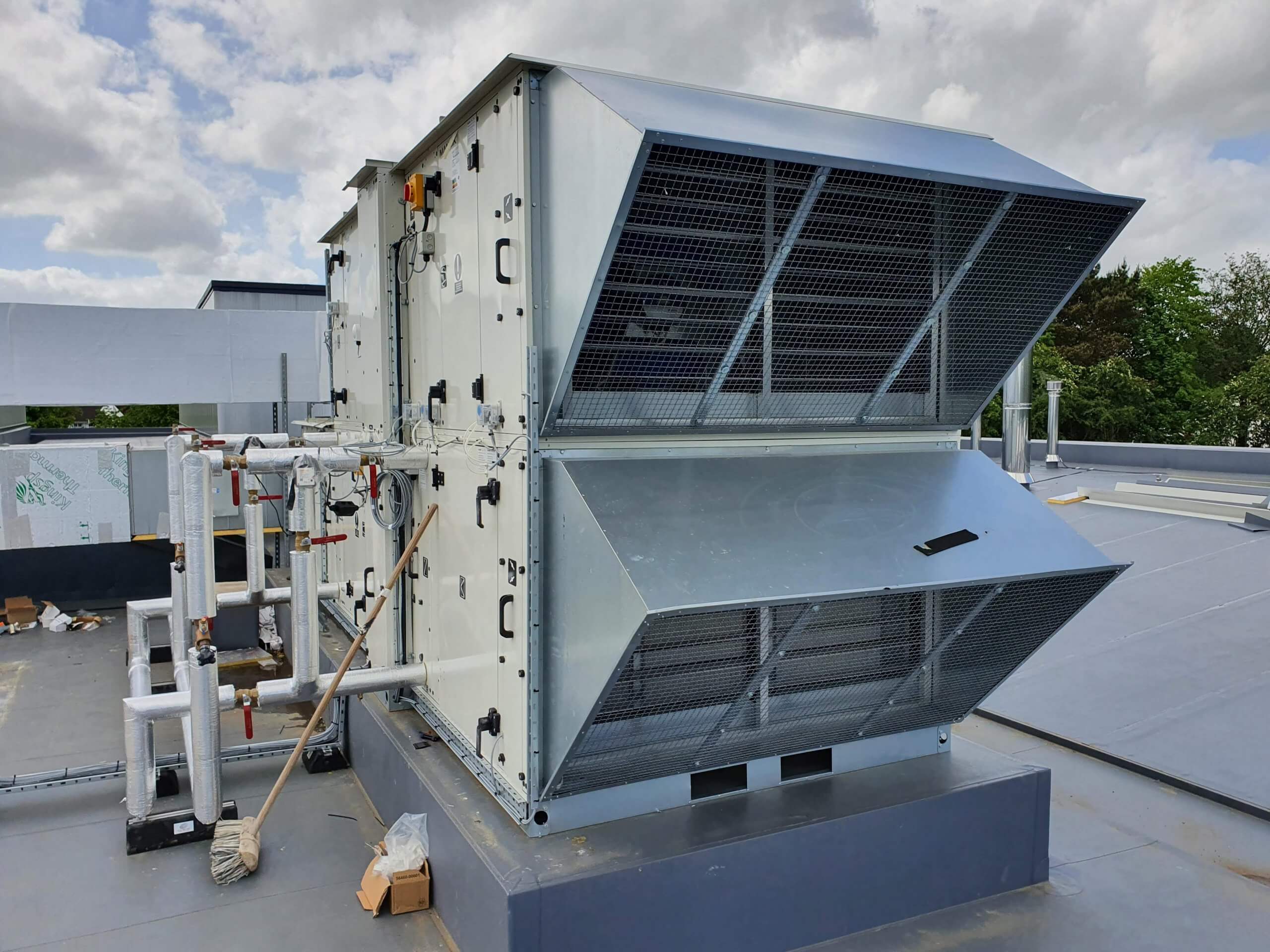

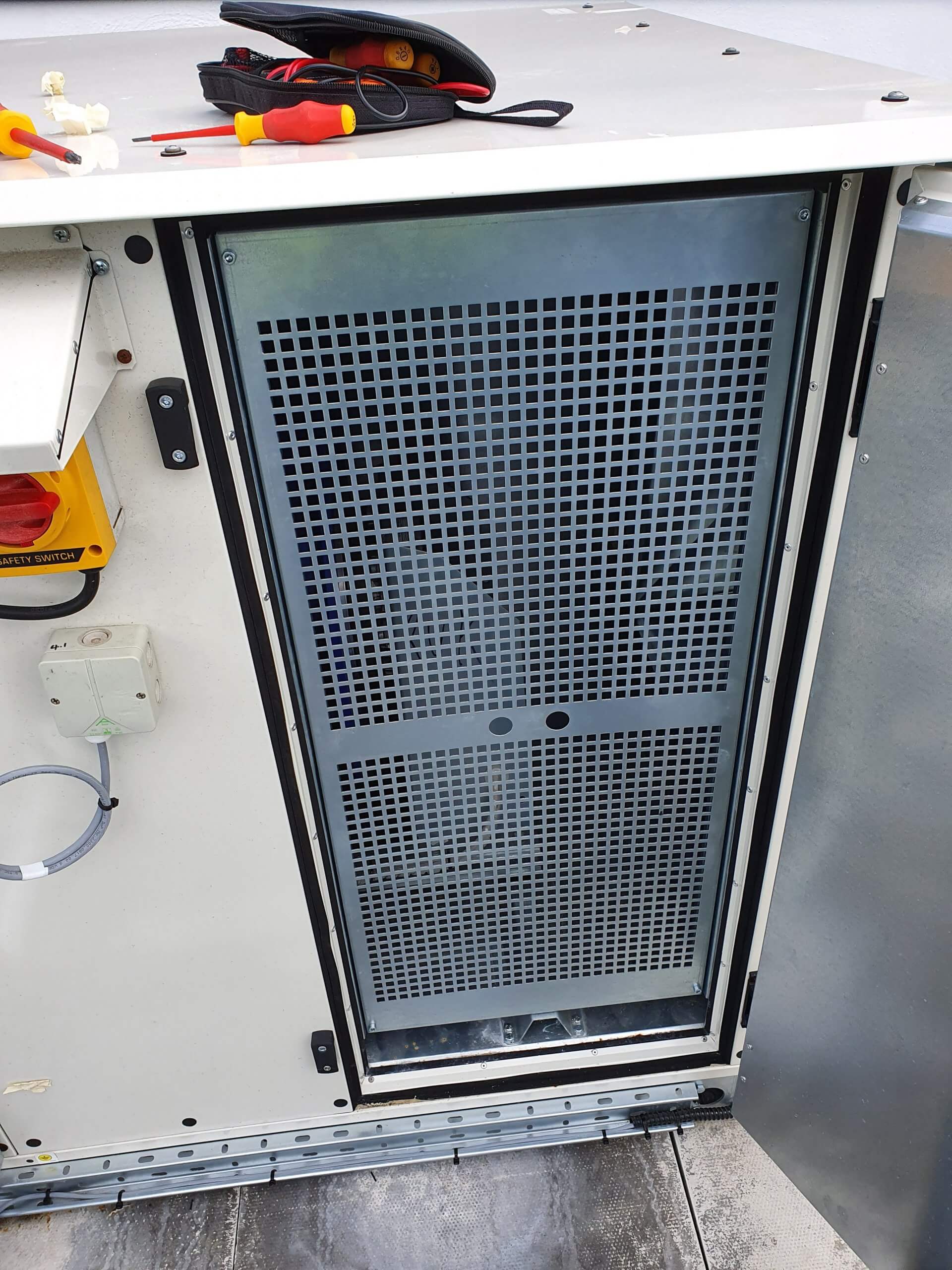

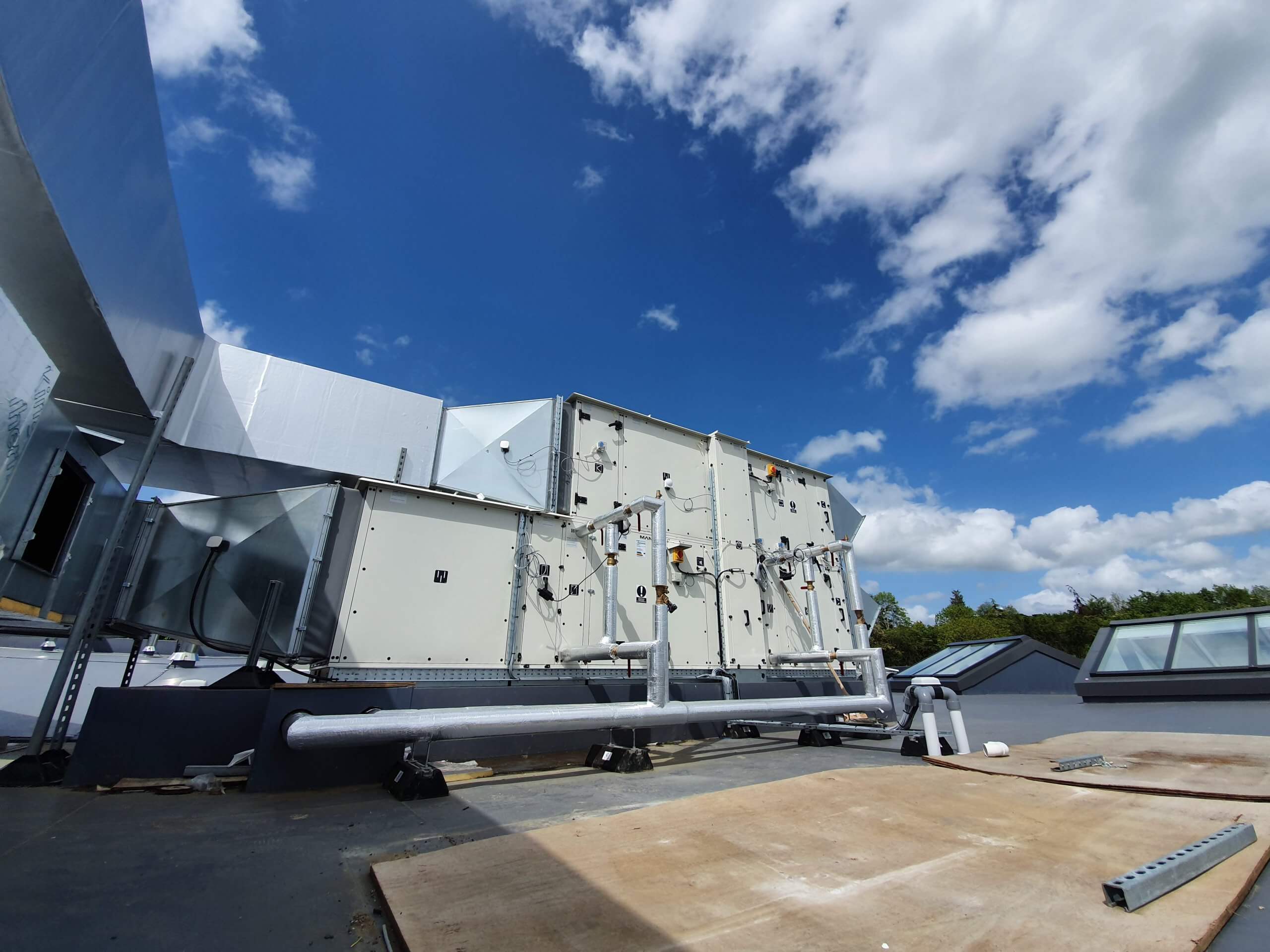

Fairhaven recently completed the commissioning of two Mandik AHUs supplied for a brand new school building for Braidside Integrated PS in Ballymena. The units, both outdoor mounted in full weatherproof trim, are fitted with Ziehl Abegg C-Pro direct drive fans with “ECblue” motors for energy efficiency and controllability.

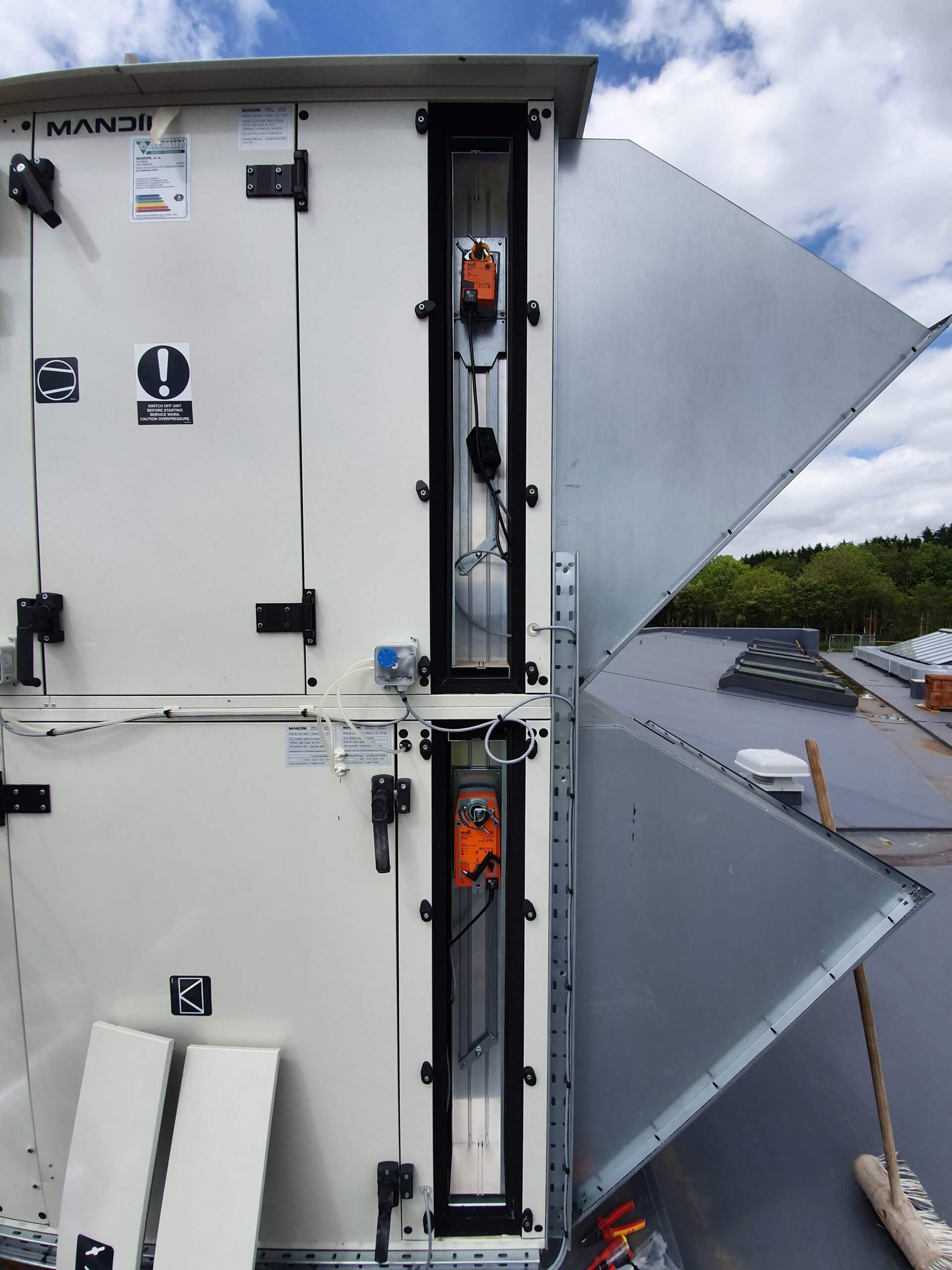

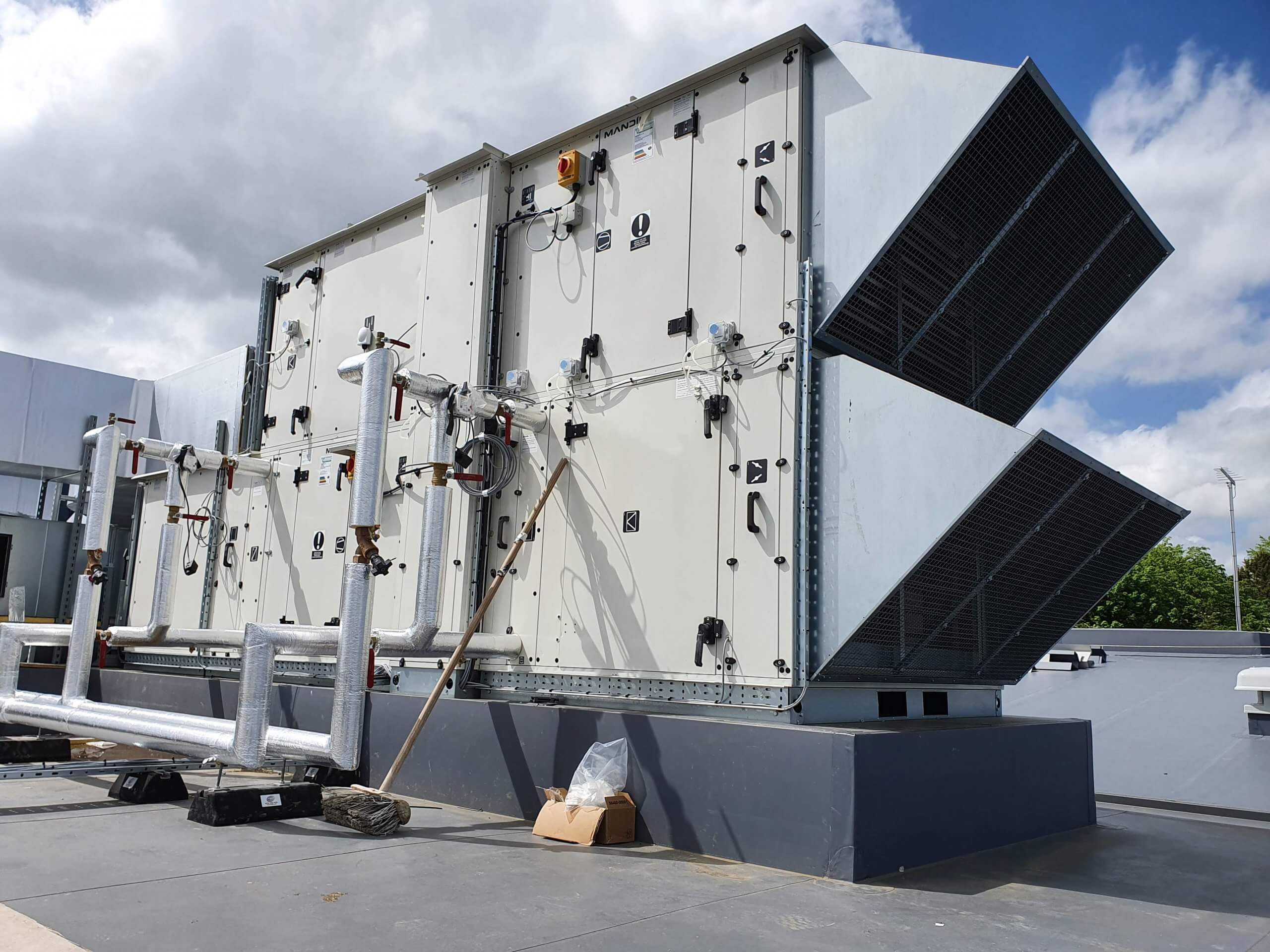

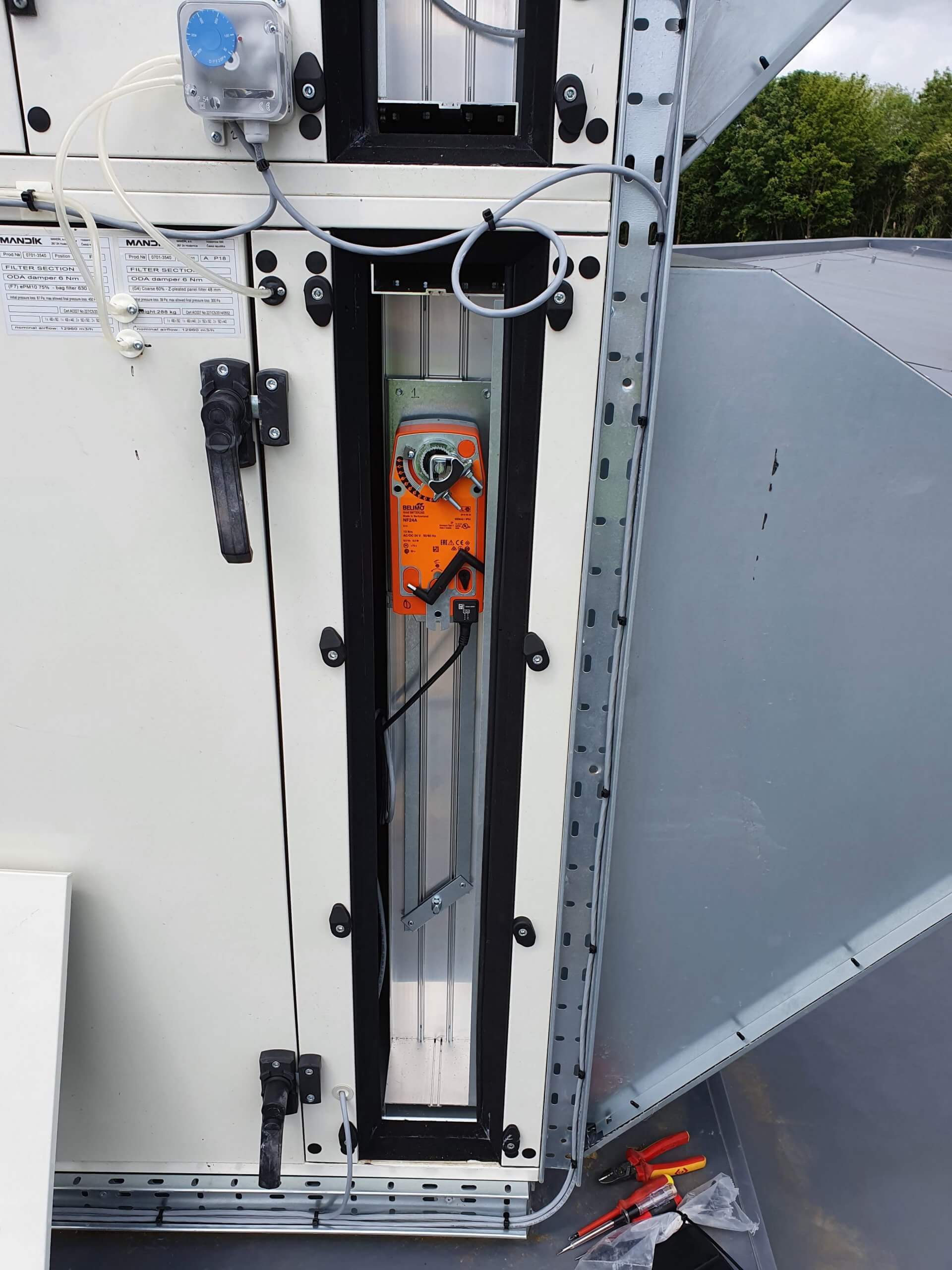

The larger unit is a double decked supply and extract unit with thermal wheel heat recovery, whilst the smaller unit is a supply only unit. Both units also feature LPHW frost and heating coils, motorised shut off dampers and M5/F7 filtration. The units have a powder coated finish to the external panels for extra corrosion resistance.

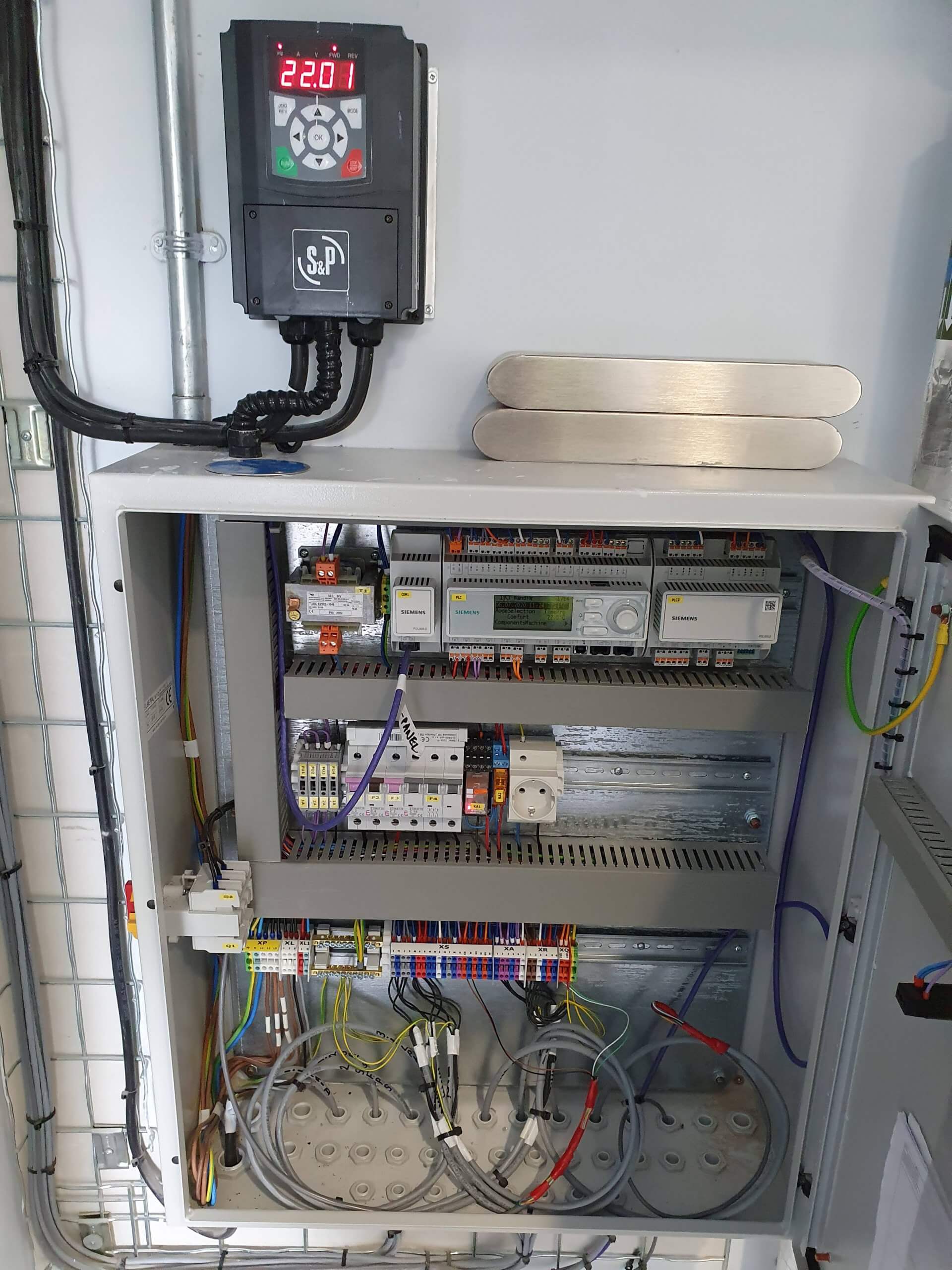

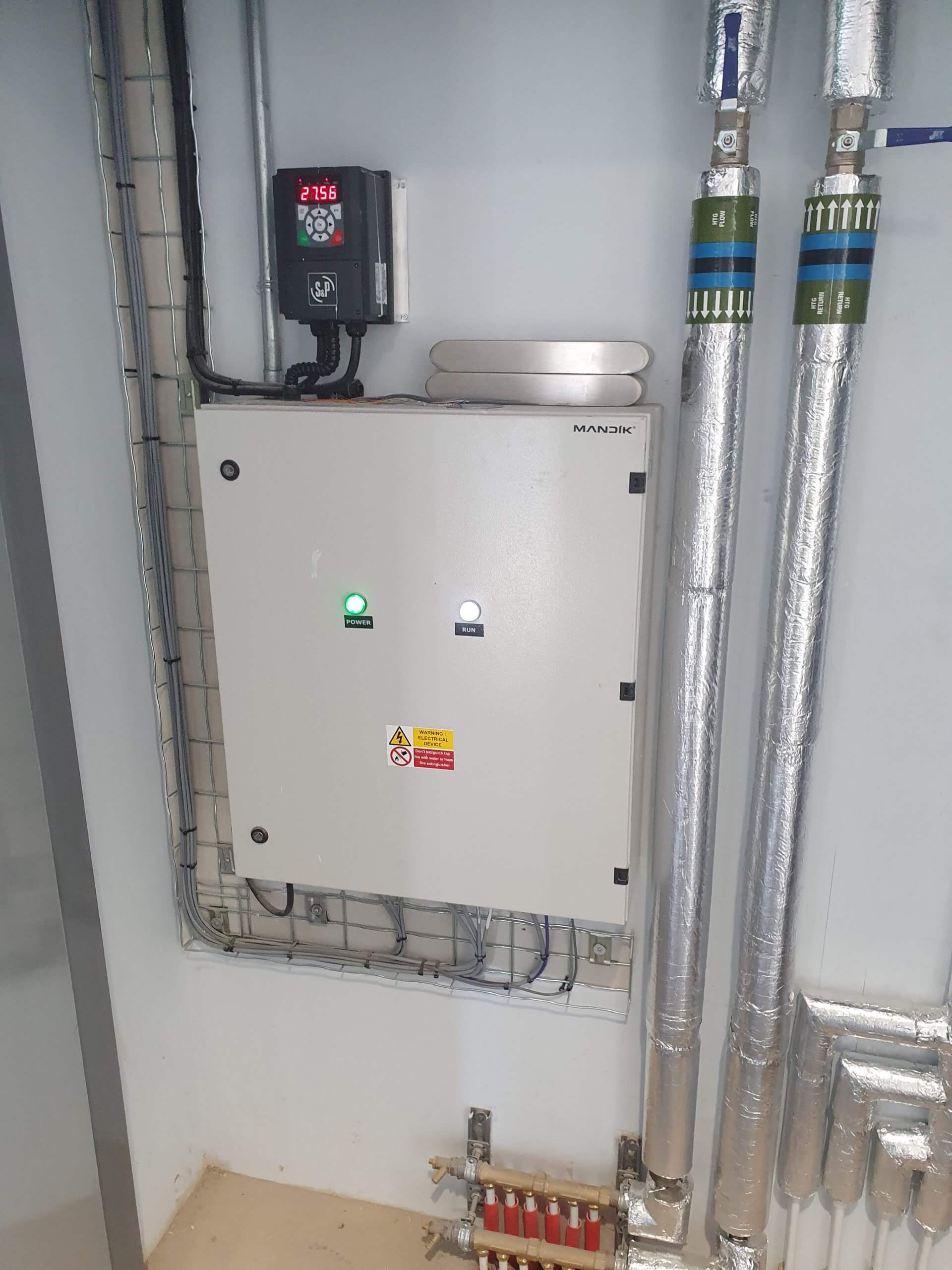

Full controls were supplied as part of the package, based on the Siemens Climatix programmable controller, with BACnet interface modules.
Thanks to Tag Air Ltd for involving us in the project!! For more information on Mandik AHUS click here.
